EV charging

This page explains the EV layer: what it shows, what a charger's popup holds, and how charging stations along a route work. The map and route controls themselves are described in The map and Planning a route.

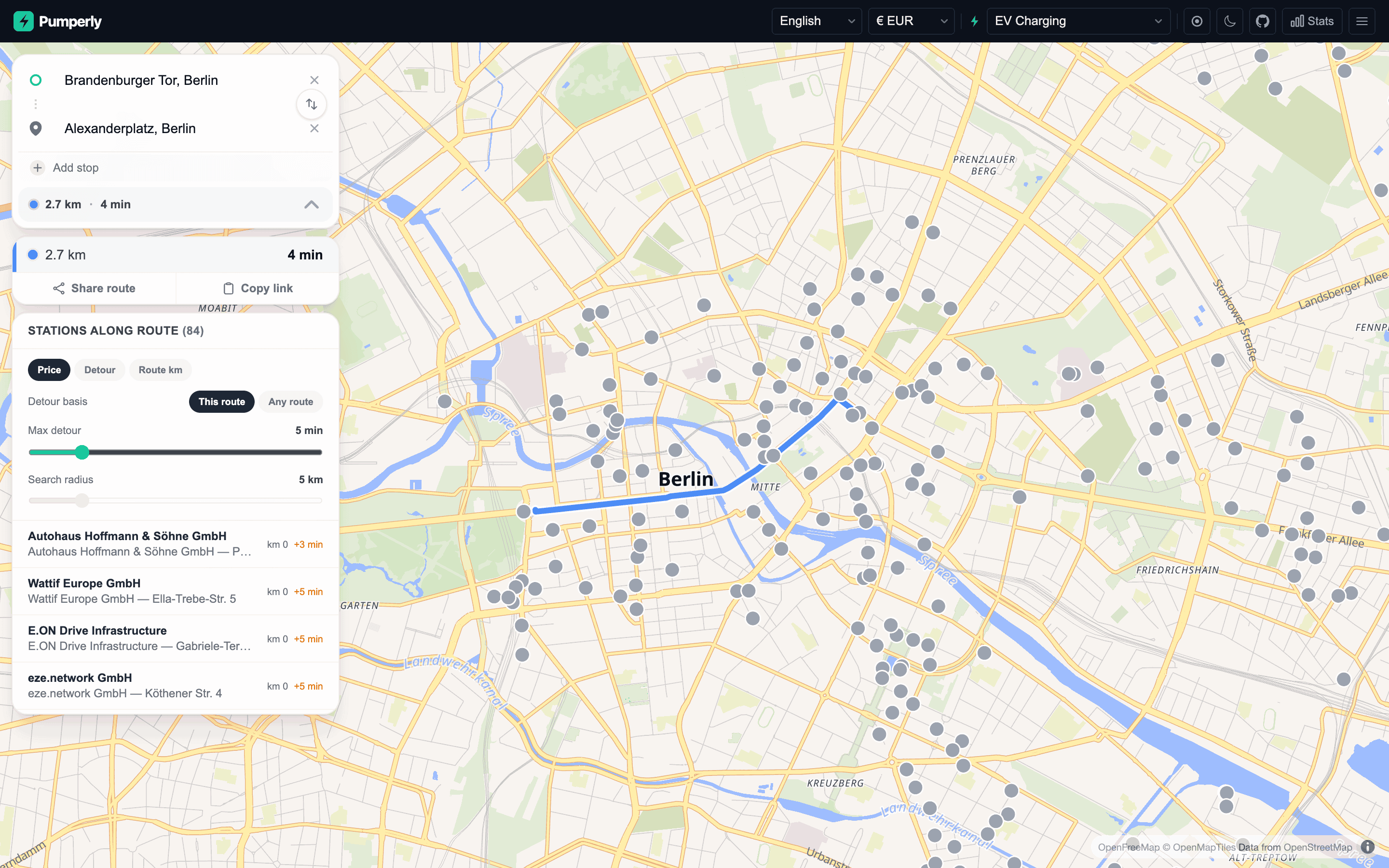

The EV layer in Berlin. Chargers are grey dots, and the side panel lists the chargers along the route with their detours.

Turning on the EV layer

Pick EV Charging in the fuel selector, under the Electric group. Its code is EV. The map then shows charging stations instead of fuel stations.

An operator can make it the first layer visitors see with PUMPERLY_DEFAULT_FUEL=EV.

What the EV layer shows

Pumperly keeps a type on every station: a fuel station, an EV charger, or both. The EV layer shows every station of the second and third kind inside the visible area.

The fuel layers work differently. They show a station only when it has a price for the chosen fuel. A station marked as both appears on the EV layer, and on each fuel layer it has a price for.

Only German chargers have prices, per kWh, from OCPDB. Chargers elsewhere carry none. That changes a few things on the map:

On a fuel layer On the EV layer
Dots are coloured by price Priced chargers are coloured by price per kWh. Unpriced chargers are grey. With no priced charger in view, every dot is grey and every cluster is orange
The price legend shows in the corner The legend shows when chargers in view have prices
The max-price slider shows The slider shows when at least two chargers in view have different prices. It hides priced chargers above the limit and keeps unpriced ones

Clustering, country markers and the Stats panel work as on any other layer. The station counts in the country markers and the Stats panel include chargers.

Where charger data comes from

Pumperly uses an official national registry where one exists, and Open Charge Map elsewhere:

Where Source
Spain Mapa REVE, the official registry, when PUMPERLY_REVE_API_KEY is set. Open Charge Map otherwise.
Germany The Open ChargePoint Database (OCPDB) by default, with prices. PUMPERLY_DE_EV_SOURCE=bnetza switches to the BNetzA Ladesäulenregister, and ocm to Open Charge Map. Neither has prices.
Every other covered country Open Charge Map

Open Charge Map needs PUMPERLY_OCM_API_KEY. Without it, every Open Charge Map scraper skips its run. That includes Spain without a REVE key, and Germany with PUMPERLY_DE_EV_SOURCE=ocm.

PUMPERLY_EV_ENABLED=0 turns off charger scraping altogether. EV charging sources covers each source, its licence and how it is refreshed.

What a charger shows

Click a charger to open its popup. It holds:

  1. The brand. For chargers this is the operator, when the source names one.
  2. The address and the city.
  3. For a priced charger, the price per kWh, with the charger's highest power and how old the price is. Fees on top follow on one line, such as +0.20 €/min after 45 min · +0.50 € per session. When the session fee depends on the time or day, each option is listed with when it applies, such as +0.50 € per session (06:00–22:00) · +1.00 € per session (22:00–06:00).
  4. For an unpriced charger, its highest power in kW, such as 150 kW, labelled "Max. charging power · Price not published". When the source lists no power, it reads "Power unknown" instead. Every charger source publishes power.
  5. The same four buttons as any station: Get directions, Show on map, Copy link and Share. See Station popup.

In a route's station list, a charger row shows the operator and the station name. Each source builds that name differently. The German registry, for example, combines the operator with the street and a site label, which tells apart two chargers at one address.

Ad-hoc prices only, no connectors or live availability

The price shown is the cheapest ad-hoc tariff, what a driver without a contract pays. Contract and subscription prices are not stored, and neither are connector types or live availability. Outside Germany no source provides prices. Check the operator's app for those.

Chargers along a route

Route planning on the EV layer works the same way as on a fuel layer. See Planning a route. Pumperly finds the chargers within the search radius of each route and times the detour to each one.

The difference is that many chargers have no price. That affects the station list:

Feature On the EV layer
Search radius, 1 to 25 km Works as usual
Detour times and the detour basis Work as usual
Max detour Works as usual
Sort by Detour or Route km Works as usual
Sort by Price Priced chargers first, cheapest per kWh first. Unpriced chargers follow in route order
Least detour badge Works as usual
Cheapest and Balanced badges Among priced chargers only. Never shown when none has a price
Average price and the difference from it Per kWh, over the priced chargers. Not shown when none has a price

Every charger within the radius is included, priced or not. Unlike fuel stations, none is left out for lacking a price. A route gets at most 5,000 stations, in route order.

Keep the radius small in cities

Cities have far more chargers than fuel stations. A 5 km radius across a large city can hold hundreds of them. Pumperly times detours in batches of 150 chargers, and each batch is one request. A visitor may send 10 detour requests a minute, so the later batches of a very dense corridor come back as unknown detours. Lower the search radius, or pick a route that avoids the centre. The limits are listed in Limits.

Clicking a charger in the list or on the map adds it to the route as a stop, as on any layer. See Pick a station as a stop.

On the EV layer, the fuel stop planner becomes Plan charging stops. You set the battery size in kWh, the consumption in kWh/100 km, the car's max charge power, and the battery level at the start and at arrival.

When any charger along the route that passes the filters has a price, the planner picks the stops with the lowest cost: the energy at each charger's price per kWh, plus its session fee, plus your time, priced with Value of your time. Unpriced chargers still compete, costed at the median price of the priced ones, so a route that crosses into a country without prices still gets a plan. Each priced stop shows its cost. The plan shows a total only when every stop has a price. A session fee that varies counts at its highest. Per-minute blocking fees are left out. When no charger along the route has a price, as outside Germany, the planner picks the stops with the least detour and charging time.

Each stop charges to at most 80 %, because charging slows sharply above that. Charging time uses the lower of the charger's power and the car's max charge power, capped at 22 kW on AC chargers. On DC it averages 75 % of that, because charging tapers as the battery fills. The reserve defaults to 20 %. Min charger power (Any, 50 kW or 150 kW) skips slower chargers. It also skips chargers whose power is unknown, because the filter can't vouch for them.

Sharing a charger

A charger link must carry fuel=EV. The map only loads chargers on the EV layer, so a link without it opens a fuel layer where the charger never loads. The Copy link and Share buttons add it for you. The EV rule explains it in full.

Summary

  • Pick EV Charging (EV) in the fuel selector to see chargers.
  • The EV layer shows every charger in view. German chargers have ad-hoc prices per kWh and are coloured by price. Chargers elsewhere are grey, with no legend or price slider.
  • A charger's popup shows the operator, the address, the city, the highest power in kW, and for priced chargers the price per kWh and any session or per-minute fees. There are no connectors or live availability.
  • Along a route, detours and the detour filter work as usual. Price sorting and the Cheapest and Balanced badges use the priced chargers.
  • The charging stop planner costs stops by price and session fee when the route has priced chargers, and by time alone when it has none.
  • Keep the search radius small in cities, or dense corridors run into the detour rate limit.
