Usage

Once the exporter runs and Prometheus scrapes it, there are three things to read: a backup in progress, the summary of the last finished backup, and the exporter's own health. The full list of series is on Metrics.

Endpoints

Path	Method	Description
/metrics	GET	Prometheus metrics endpoint
/webhook	POST	Duplicacy Web UI report endpoint; WEBHOOK_PATH changes the path
/health	GET	Health check (returns 200 OK)

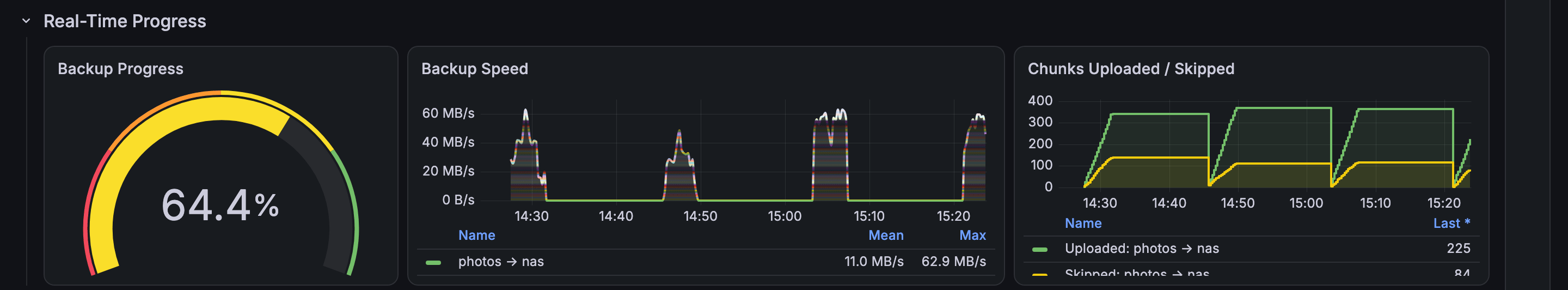

A backup in progress

In log_tail mode the exporter parses each chunk line as Duplicacy prints it, so these move while the backup runs:

• duplicacy_backup_running is 1.
• duplicacy_backup_progress_ratio goes from 0.0 to 1.0.
• duplicacy_backup_speed_bytes_per_second shows the current upload speed.
• duplicacy_backup_chunks_uploaded and duplicacy_backup_chunks_skipped count this run's chunks.

The Web UI webhook is sent only when a backup ends, so in webhook mode there are no live values.

A finished backup

When a backup ends, the duplicacy_backup_last_* series hold its summary: exit code, duration, file counts, bytes uploaded, and duplicacy_backup_last_success_timestamp_seconds. The revision number, duplicacy_backup_last_revision, comes only from log_tail mode, because the Web UI report does not carry it; webhook users get revision counts from the storage poller. These are the values the exporter saves to STATE_FILE, so they survive a restart. A useful check in Prometheus:

time() - duplicacy_backup_last_success_timestamp_seconds

It gives the age of the last good backup, in seconds, per snapshot_id and storage_target.

Prune runs show up as duplicacy_prune_running and duplicacy_prune_last_success_timestamp_seconds, in log_tail mode only. Storage size and revision counts need the storage poller.

Dashboards and alerts

The Grafana dashboard #25089, the scrape config and two alert rules are on Prometheus and Grafana. The duplicacy-ha integration reads the same /metrics into Home Assistant sensors.
