genieacs-mcp

genieacs-mcp

npm Docker Pulls GitHub Stars License: GPL-3.0-or-later

genieacs-mcp is an MCP server for GenieACS, the open-source TR-069 ACS that manages routers, ONTs and other CPE devices. Add it to Claude Desktop, Cursor or any other MCP client and ask in plain words: which devices stopped informing last night, what firmware serial 000003 runs, reboot the ones tagged pilot. The assistant reads and acts through your GenieACS NBI with 7 resources and 12 tools; one Go binary, no database of its own. Start with Getting started, then Usage for what the assistant can read and do.

  • Getting started

    npm, Docker Compose or a local build, a demo ACS with simulated devices, and what the first exchange looks like.

  • Connect your client

    The mcpServers block for Claude Desktop, Cursor and Claude Code over stdio, and the url block for a server you already run over HTTP.

  • Usage

    Example prompts, the 7 resources, the 12 tools with their arguments, and which of them change a device or the ACS.

  • Configuration

    Every environment variable with its default, and the HTTP transport's security model.

What the assistant sees

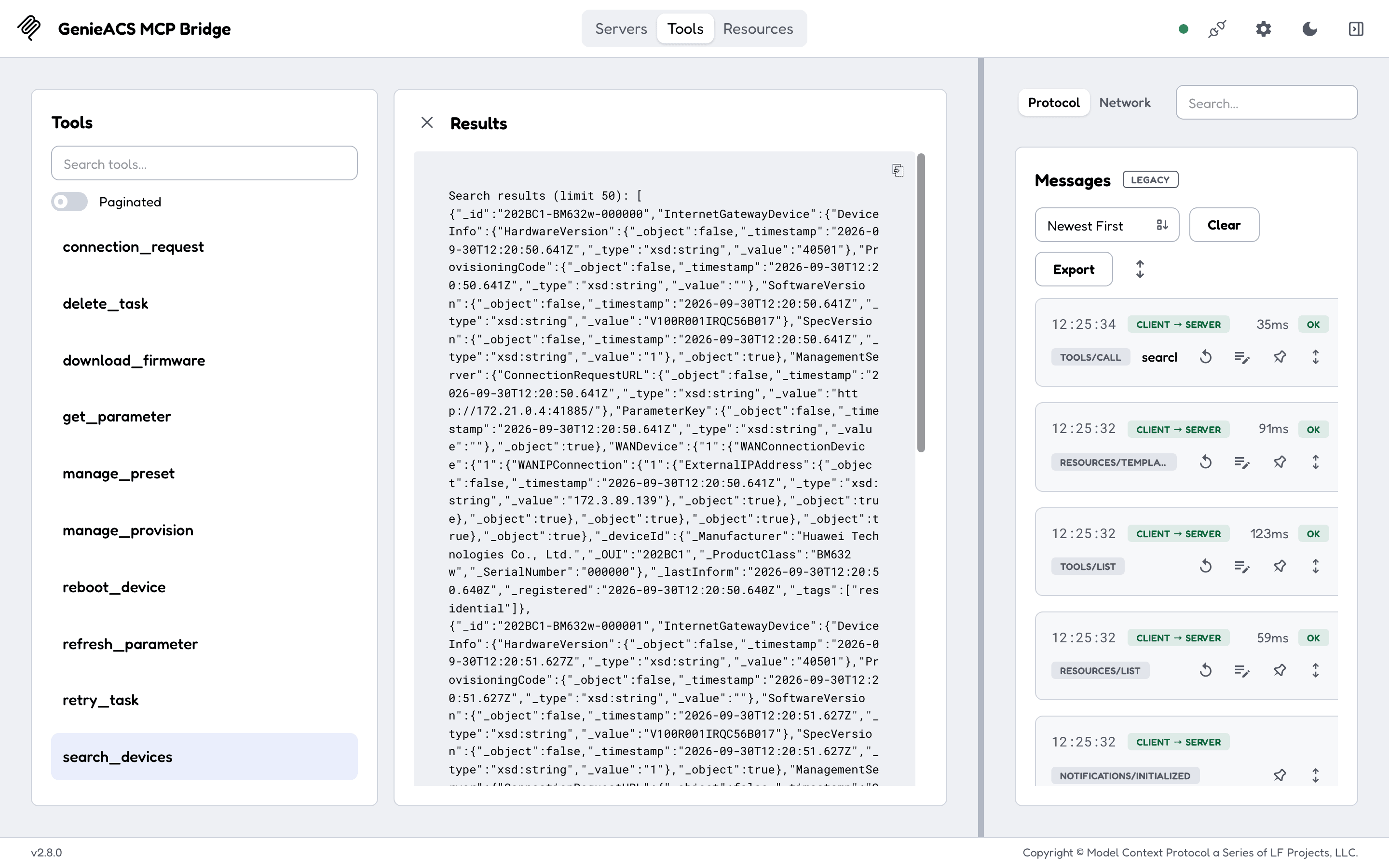

MCP Inspector connected to genieacs-mcp: the search_devices tool run with the query _tags residential, and the result listing simulated Huawei BM632w devices with their ids, manufacturer, last inform and tags

An MCP client sees 7 resources it can read (genieacs://devices/list, genieacs://device/{id}, tasks, faults, files, presets, provisions) and 12 tools it can call. search_devices takes a MongoDB-style filter, so "devices tagged residential" or "devices that last informed before yesterday" is one call. The tool list, the resource catalogue and a set_parameter call are shown on Usage.

Read versus act

  • search_devices, get_parameter and the seven resources only read the ACS; get_parameter answers from the ACS cache without contacting the device.
  • The other ten tools queue a task on a device (reboot, firmware download, refresh or set a parameter), wake it with a connection request, or change the ACS (tags, presets, provisions, tasks). GenieACS sends the connection request at once, so a reachable device runs the task within seconds.
  • There is no read-only mode. Point the server at an ACS you are willing to let an assistant act on, and keep your client's tool-approval prompts on. Usage marks every tool.

How it runs

flowchart LR
    C[MCP client<br/>Claude Desktop, Cursor, Claude Code]
    S[genieacs-mcp<br/>one Go binary]
    N[GenieACS NBI<br/>port 7557]
    D[CPE devices<br/>TR-069]
    C <-->|MCP over stdio or HTTP /mcp| S
    S <-->|HTTP| N
    N <-->|CWMP| D
  • Over stdio the client starts the binary itself; that is what npx -y genieacs-mcp does, and it is the mode for a local client.
  • Over HTTP the binary serves /mcp on 127.0.0.1:8080. Listening on any other address requires MCP_AUTH_TOKEN, and every request's Host and Origin are checked against DNS rebinding. See Configuration.
  • One static binary for Linux, macOS and Windows on amd64 and arm64, also an npm package and the Docker image drumsergio/genieacs-mcp, one version number for all three.

What it does not do

  • It does not talk to devices directly. Everything goes through the GenieACS NBI, so a device the ACS cannot reach (NAT, offline) fails the same way it would in the GenieACS UI: a connection_request returns 504 and a queued task waits.
  • It does not confirm that a task ran. A tool answers with the task document the ACS returned; the device's own state, read afterwards from genieacs://device/{id}, is the proof.
  • It does not store anything. No database, no cache of its own; get_parameter reads the ACS's cache.
  • It does not upload files to the ACS yet; upload_file, delete_file and a files/list resource are on the roadmap.

Getting help

  • A call fails with 403 untrusted Host header: the client reached the server with a Host the server does not know; add it to MCP_ALLOWED_HOSTS on Configuration.
  • A call fails with 401: the server has MCP_AUTH_TOKEN set and the client sent no Authorization: Bearer header; see Connect your client.
  • initialize succeeds and every read fails with a connection error: ACS_URL is wrong; Getting started shows what that looks like.
  • Something else: open an issue with the server's log lines. A security problem goes through the security policy, never a public issue.
  • Building, testing with MCP Inspector and sending a fix: Development. The GenieACS family, other MCP servers and where this one is listed: Related projects.

License

genieacs-mcp is released under the GPL-3.0-or-later license. It is built on mcp-go.
