Usage¶
Two words mean one thing each on screen. A route is a way out for traffic in Custom mode: Direct, your VPN, a proxy or a Tailscale peer. An address is one IP address or range the app has sent a certain way; a service such as Telegram is several of them.
Menu bar¶
Click the VPN Bypass mark in the menu bar: two lines and a bar, with an arrow head on the top line while routes are enforced. The dropdown shows:
- a status chip next to the wordmark, the only coloured mark at the top: On, Waiting (the app waits for a reconnected tunnel to hold before it re-applies routes, or holds back after the tunnel dropped right after several applies), Partly routed (some of your list is routed and some failed or has no addresses), Not routing (nothing is routed, the helper is down, or the VPN's kill switch sends all traffic through it, so the routes change nothing; see VPN kill switches) or Off (no VPN, or a fresh install with nothing configured), in grey, since neither is a fault;
- three lines under it: the VPN it found, one sentence on what your lists route, and a third line with the numbers, for example "62 addresses · applied 24 s ago · DNS again in 18 min". When something is wrong, the third line says what instead, with one button: with the helper down it says how many addresses from before are still routed, since a stopped helper leaves its routes in place, and says no address is routed only when none is left; Fix… opens Settings > Status, where the helper's Install button is; when part of an apply failed it gives the count, for example "62 addresses, 7 failed", and Show opens Settings > Status > Problems. Problems lists each address the system refused and each name that did not resolve, with the entry it was for and the reason, then the entries that route no address; Retry applies the routes again, or after a Remove All Routes that left some, removes them again. With no VPN it says what connecting does in the current mode. While the chip reads Waiting, it counts down to the apply;
- on a fresh install in Bypass mode, in place of everything down to the gear: the question "What should skip the VPN?", six common services with their switches, a row that opens Settings on the Services page, a field to add a site, and a line that offers VPN Only. Once a service is on or a site is on the list, the normal dropdown below takes its place at once;
- the mode: Bypass, VPN Only and Custom side by side on one track in every mode, the mode in use raised, and what it does on the line under it ("Your list skips the VPN.", "Only your list uses the VPN.", "Your rules pick each route."). Picking another mode asks first, and the track moves only after you confirm. Entering Custom turns your lists into rules here too, when Custom has no rules yet and the current mode's list has an entry switched on, and the question says so only then, as the Settings sheet does;
- a field to add a domain to the current mode's list, open in every state, with no VPN and while the app starts too. Its placeholder says what it adds: "Add a site to bypass…", "Add a site for the VPN…", or "Add a Direct rule…". ⌘N puts the cursor in it, Return adds, and Esc empties it and leaves it; while routes are being applied it waits, as the Domains page does; with the field empty and unused, Esc closes the dropdown as before. After an add the field empties and a line under it says where the entry went. In Custom mode it adds a rule on the Direct route instead: an IP range such as
10.0.0.0/24becomes a CIDR rule, and a name or a pasted link becomes a domain rule for its host. A value it cannot save stays in the field with a line under it that says why: a range with a prefix outside /2 to /32, or a value that already has a rule. When that rule is on another route, such as your VPN or a proxy, the line names the route, since the first matching rule wins and a Direct rule after it would do nothing; - under the field, the site open in the browser you just left: "shop.example.com · open in Safari", with the field's add (Add to Bypass, Add to VPN Only, or Send Direct in Custom mode). A site already listed says where instead, as the Lookups page does. It reads the front tab of Safari, Safari Technology Preview, Chrome, Chromium, Brave, Edge, Vivaldi and Arc through Apple Events, and only when that browser was the app in front before the dropdown opened; Firefox cannot be read this way. The first time, the row offers Allow…, which brings up macOS's Automation prompt for that browser; once you say no, the row stays hidden until you allow it in System Settings > Privacy & Security > Automation. A blank page, a local page (localhost, a file) or an IPv6 address gives no row;
- what your lists route, one row per service, domain or IP range you added, with how many addresses it routes in one column under the word Addresses, under Skipping the VPN in Bypass or Through the VPN in VPN Only. Past eight rows the list scrolls. Hover over a row to see its addresses, and one button at its end: Turn Off for a row that routes, Retry for a row with a problem, which applies the routes again. Right-click a row for Turn Off, Retry, Show in Settings (its page, with the search set to the row) and Copy Addresses. A row that routes no address while no apply is running or waiting after a reconnect gets an amber mark, and under its name the reason: what the last apply said for it, such as "Did not resolve: no answer from DNS", or "No address is routed for it." In VPN Only the app's own catch-alls are one line, "Everything else: direct", and the counts leave them out: the card, the third line at the top, the Status page's Addresses section and the Addresses Routed notification all count only the addresses your lists route. Addresses owned under Tunnels on the Status page counts the kernel's routes that carry the app's tag by the same rule and names the catch-alls apart, as in "2, plus 4 catch-alls". With only the catch-alls in place, the chip still reads On, since everything else is routed direct. In Custom mode, Routes In Use comes first, then Routed by your rules lists the rules that routed an address. Addresses that no entry on your lists owns, such as those of an entry you just removed, are one "Left from earlier" line;
- Pause, with For 15 Minutes, For 1 Hour, Until the VPN Reconnects and Until I Resume. Pausing removes the app's routes, so traffic follows the VPN's own routes (a split-tunnel VPN still sends some destinations outside it), and the chip reads Paused, with "Paused: traffic follows the VPN's own routes." and, on the third line, when it ends ("Resumes at 14:32, in 58 min") and a Resume button. If some routes could not be removed, the block says how many are still in place, with Retry, and never says Paused. While paused nothing puts a route back: not auto-apply, the DNS refresh, a reconnect, a wildcard lookup, the add field or an edit on the Domains or Services pages; what you add or change is saved and applied when you resume. Resuming puts back at once the addresses resolved before the pause, then looks the names up again in the background, and it waits as the apply after a reconnect does when the tunnel just came up or keeps dropping. Until the VPN Reconnects ends at the reconnect only when the helper is ready; if it is not, the pause holds, the third line reads "The VPN is back. Resumes when the helper is ready." with Fix, and the pause ends on the first status check that finds the helper ready. Its apply waits for any apply already running and for the post-connect wait. Changing mode ends the pause, and so does turning on a proxy route or pointing a Custom rule anywhere but Direct. Quitting while paused leaves no route behind, and the app starts unpaused. Pause is greyed in VPN Only, where removing the routes would send the listed sites outside the VPN, and in Custom unless every enabled rule goes Direct; it is also greyed while a proxy or Tailscale route runs its local listener, which Pause would not stop. The menu's first line says why. The menu bar icon shows the paused glyph;
- Refresh, the gear that opens Settings, and a "…" menu with Verify Routes and Re-resolve DNS Now while a VPN is connected, then Open Logs, Quit VPN Bypass and Remove All Routes…, which asks before it removes anything. The gear and the "…" menu take a click anywhere in a 24 pt square around them;
- after Verify Routes, the result is a Route check card on Settings > Status, where Dismiss takes it away. Verify path-checks at most 10 of the routed addresses: single addresses only, because a range has no one address to connect to, and the first 10 in sort order. Each must leave the way its route points and answer on port 443, and a control address the app does not route must leave the other way, or every result reads "Check broken"; a control that should take a split-tunnel VPN but leaves around it is not broken, and each address is judged by its own route (see Path check). The card says how many of how many addresses it checked, for example "Checked 10 of 62 addresses (single addresses only).", lists the addresses that did not answer first, up to three with what each is routed for and why it failed ("Went into utun4", "No answer on 443 via en0") and then "+ N more", then one line for the rest with their response times. "Show all 10 results in Logs" opens the Logs page, where each address has its own line. With only address ranges routed, the card says there was nothing the path check could test;
- after a change made through
vpnbor an MCP server, a line at the foot that names it, for example "Last change: added en.wikipedia.org via the command line, 2 min ago". Click it to open Logs showing only the lines that came through the control socket. A change you make in the app removes the line.
Each time you open the dropdown, the app checks the VPN again and puts back any route macOS dropped, so the dropdown shows the state as it is now. It also runs the same check every 30 seconds, whether the dropdown is open or not, and while an alert such as the mode switch question waits for an answer.
While the dropdown is open, ⌘N puts the cursor in the add field (on a fresh install, in the site field that stands in for it), ⌘, opens Settings and ⌘Q quits. ⌘P pauses for an hour, or resumes while paused; it does nothing while Pause is greyed. ⌘R refreshes routes only while the Refresh button is enabled, which is when a VPN is connected, the helper is ready and no route or DNS work is running; otherwise it does nothing. Holding ⌘R refreshes once. The "…" menu lists ⌘Q next to Quit, and the Refresh button's and the gear's tooltips name their shortcuts.

Settings¶
Click the gear icon to open Settings. The sidebar opens with the app's icon and name, then the mode, then every page in every mode: Status at the top, then Routing (Domains, Services, Rules, Routes), Insight (Lookups, Logs) and App (General, About). The window opens on the page you had open last, Status the first time, and the page name is the window's title. The title bar holds only the window buttons; under it each page has a header with its name and, on the right, the page's search and buttons. Domains, Services and Rules also show a line on what the page is for under the name. The window can be resized, down to 720 × 480. When it opens, the sidebar has the keyboard focus, so ↑ and ↓ change page.
Pages that belong to another mode stay in the sidebar, greyed and in italics, and open read-only with one line at the top, for example "Rules apply in Custom mode. You are in Bypass." Its Switch… button opens the mode sheet on that mode. Domains belongs to Bypass and VPN Only, Services to Bypass, and Rules and Routes to Custom. Switching mode keeps the page you are on; a page of the old mode turns read-only.
The routing mode is at the top of the sidebar, under Mode: the three modes as cards, each with its name and what it does, the mode in use outlined and checked. VoiceOver reads each one by its name, with what it does as the hint, and says which one is selected. Picking another mode opens a sheet that lists the three modes, each with one sentence and what your lists hold for it ("4 services and 2 domains"). For Custom it says "Your lists become rules." when the switch will build them, which happens when Custom has no rules yet and the current mode's list has an entry switched on. Otherwise it says how many rules Custom has. Nothing changes until you click Switch, and the cards keep showing the mode in use until then.
On the list pages (Domains, Services, Rules, Routes, Lookups and Logs) a search field sits at the right of the page header, and its prompt names the list it filters ("Search Domains"). It keeps the rows whose name contains what you type, ignoring case and accents, and ⌘F puts the cursor in it.

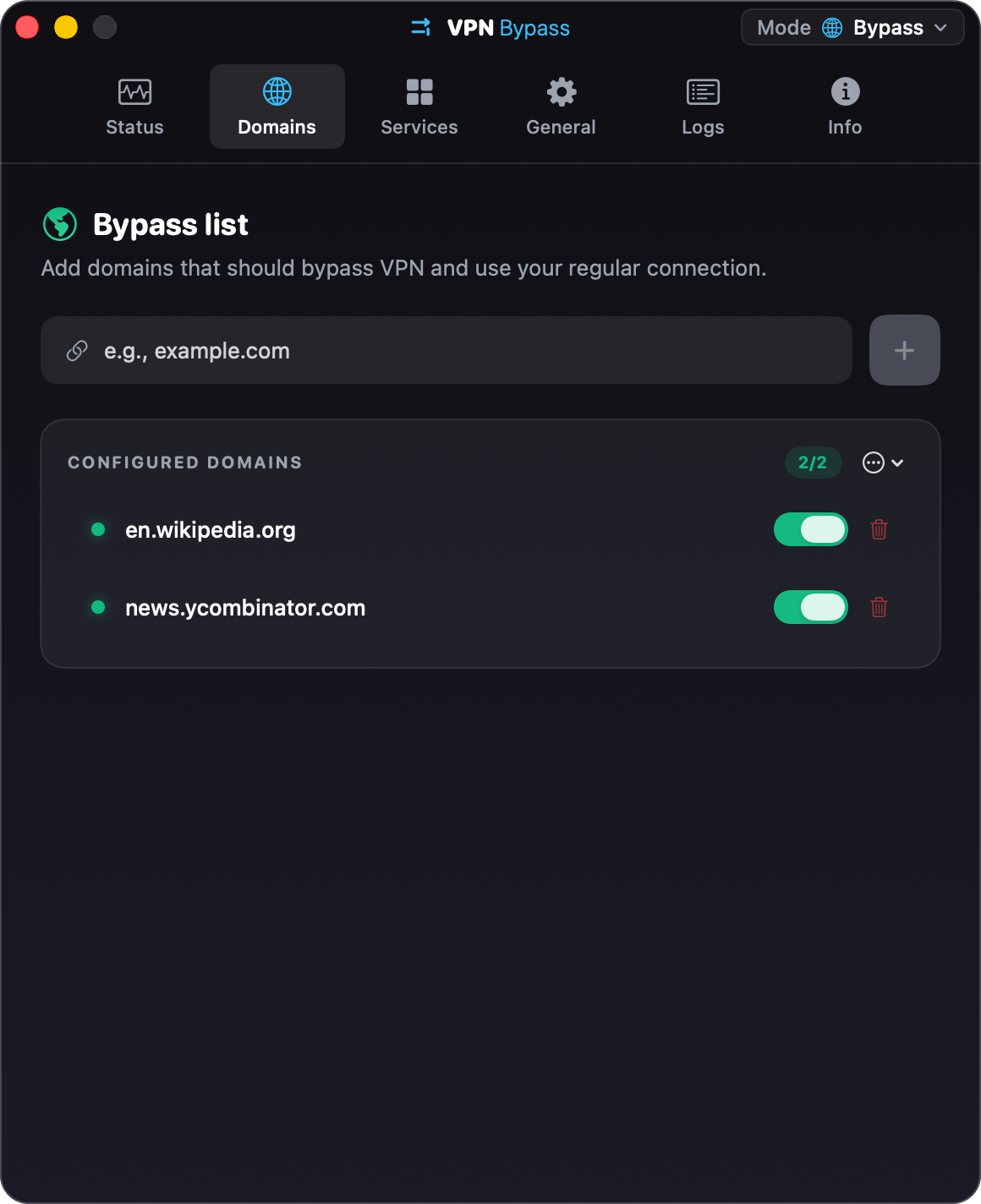

Domains: the list of the mode you are in comes first, the Bypass list in Bypass mode and the VPN Only list in VPN Only mode. Its first row adds a domain, a *.wildcard or, in VPN Only, an IP range: type it and press Return. A name typed with a leading dot (.example.com) is the wildcard *.example.com, and entries and rules an older version saved that way become wildcards when the app starts. With notifications on, that launch sends one notification naming them. Status lists them at the top (".example.com is now *.example.com") until you click Dismiss; vpnb status prints the same list, and --json has it as runtime.convertedEntries. Each row of that list has its switch, and delete appears when the pointer is on the row. Outside Custom mode, a row that is on shows how many addresses it routes, a wildcard the ones it has learned as you browse. The other mode's list follows, read-only, so you can see it without switching modes: its rows have no switch, no count and no delete, and an entry that is off says Off. The ⋯ menu above the list holds Turn All On and Turn All Off.
A domain that finds no address on three refreshes in a row while the VPN is up gets a warning sign and the line "Hasn't resolved since" with the day of the first failure. A refresh with the VPN down does not count, since an internal name resolves only through the VPN, and neither does a refresh that asked several names where none resolved. One answer clears it. While any entry is in that state, a "Not resolving" button above the list shows only those entries, so you can remove them.
Routing is per address, so a domain served from a shared CDN address takes every other site on that address with it. When a row's routes reach a Cloudflare, Fastly or CloudFront address, its line says so, for example "Shared CDN address (Fastly): other sites on it bypass the VPN too", or "use the VPN too" on the VPN Only list. While a VPN kill switch is on, no route takes a site around the VPN, so a Bypass row says only "other sites on it share this route". It is information only and changes nothing that is routed. The ranges are the ones each CDN publishes, bundled with the app and refreshed with scripts/update-cdn-ranges.py; they can be out of date, and a CDN that publishes no list, such as Akamai, is not recognised, so a row without the line may still share its address. An address or IP range you typed never gets the line.
Services: the header says what the page is for, with the + that creates a custom service beside the search. Under it, Your services lists the services that are on, then your custom services that are off. Each row says on its second line what the service holds ("6 domains · 8 IP ranges", "Custom · 2 domains"), then the addresses it routes in Bypass mode, then its switch. Each service bundles known domains and IP ranges. The app ships a catalogue of services (Telegram, YouTube, Spotify, French government sites, French banks, …), one file per category inside the app; nothing is downloaded. "Browse catalogue…", under the list, opens it: a search field (name, domain or country, so "France" finds the French government and every French bank), then a row with a country menu that shows one country's services only (its government sites and banks) and a chip per category, a checkbox per service and a select-all box per category. "Bypass 3 services" turns the picked ones on with one save and one batch of route writes, and they join the page. A service that is already on shows checked and greyed out, and one a custom service holds off by its name shows why. A search on the page that finds nothing offers "Search the catalogue" with the same text. A service an older version shipped and the catalogue no longer has stays on the page with your custom services when it is off, since the catalogue has no row for it. Switching a catalogue service off sends it back to the catalogue: it keeps its row, switch off, until you next open the page. A service you switch on or off keeps its place until then, so a row never moves from under the pointer. That holds for a newly created service too, and for a service switched through vpnb while the page is open. The ⋯ menu above the list holds Turn All On… and Turn All Off, and both re-sort the list at once. Turn All On covers the services on the page only, never the catalogue. It asks first when it would turn on more than five services ("Send 8 services around the VPN?"), with Cancel as the default button. Turn All Off does not ask.

The catalogue is a starting point, not a complete list. When a service needs a name it does not ship, add the name to it from the Lookups page, or make a custom service.
Custom services: the + button on the Services page creates one, with a name, its domains and optional IP ranges. The app tracks routes by name, so a custom service cannot take the name of another service, built-in or custom, or of a domain on the Bypass list. Case and spaces around the name do not count, so Netflix already has "netflix". When a name is taken, the editor outlines it in red, says which service or domain has it, and keeps Save off. Importing a configuration file with such a name imports nothing and names the service to rename in the file. A built-in service is the exception there: a file whose custom service has a built-in service's name imports, and the built-in one stays off, as below. The rule holds the other way too: the Bypass list refuses a domain that a service has as its name, from the Domains tab, from Undo and from vpnb domain.add. A configuration saved before this check still loads, with one change: a built-in service that one of its custom services has the name of is turned off. A custom service in it whose name is taken says so on its row's second line on the Services page, with an amber mark. Editing a service whose name is taken asks for a new name before it saves, and renaming or deleting it puts back the routes of the service or domain that had the same name. Services route only in Bypass mode, so in VPN Only or Custom mode deleting it leaves in place the routes of a VPN Only entry, the VPN Only catch-all or a rule with that name. An app update can add a built-in service whose name one of your custom services already has. Your custom service keeps its name, its switch and its routes, shows no red line, and its edits save. The built-in service stays off, and in the catalogue its box stays greyed out with a line that names your custom service, until you rename it.
Apps (Bypass mode): apps on this list skip the VPN for the new TCP connections they open to public IPv4 addresses, with no rule to write. A connection that was already open when the engine started keeps its path, and so does one the app binds to a particular interface itself. The + button opens a chooser of the apps that are running and those in the Applications folders, each with its icon, name and bundle ID, and a field for an executable name, for a program with no app to pick such as a command-line tool. Each row of the list shows the app's icon, its name, the identifier its code is signed with, a switch, and Delete with Undo. Per-app routing (Settings > General) carries the list. While it is off, waiting for approval, paused or stopped, the page says so above the list and the apps follow the routes like every other app: while a VPN is connected that is the VPN, unless a Bypass domain, a service or the VPN's own split tunnel sends that destination around it; with no VPN connected it is the physical connection, unless a kill switch blocks it. VPN Bypass itself cannot be added, nor an app signed by one of the VPN and network security vendors on the app's built-in list, nor one signed by the team of the program that owns a live tunnel: their traffic always keeps its own path. A VPN or security app from a vendor that is not on that list and owns no live tunnel is not recognised, so leave it off the list. An app added by its bundle ID before it was installed says on its row that per-app routing turns it down once it is installed, if its signing team is a VPN or network security vendor's or owns a live tunnel; so does an installed app signed by the team of a program that owns a live tunnel. An executable name has no app to read a team from, so that check waits for the connection: per-app routing still never takes the traffic of a program signed by a team on that vendor list or by the live tunnel's owner. When Custom mode has no rules yet, switching to it turns the apps that are on into rules for apps with the Direct route; with rules already saved, the switch keeps them and adds none. vpnb app.list, vpnb app.add pattern=com.example.App (a bundle ID, or an executable name such as curl) vpnb app.rm pattern=com.example.App (or id=<uuid>), and vpnb app.enable and app.disable with the same arguments (the row's switch) do the same from a script; app.list says per app whether per-app routing serves it now, and vpnb app.add with the bundle ID of an installed app refuses it when its signing team is a VPN or network security vendor's.
VoiceOver: every switch, in the dropdown and on every Settings page, carries its row's name, such as Telegram or en.wikipedia.org, so a list of services is no longer a column of identical switches. Icon-only buttons say what they do and to which row, such as "Delete en.wikipedia.org" or "Edit Work Tools". Each dropdown row is read as one element, such as "Telegram, 18 addresses", and its actions (Turn Off Telegram, Show Telegram in Settings, Copy the Addresses of Telegram) are in the VoiceOver actions rotor. In the Settings sidebar, once it has the focus (click a page, or Tab with full keyboard access), ↑ and ↓ move from page to page.
If the menu bar icon cannot be seen, because it is switched off in System Settings > Menu Bar or the notch hides it, open VPN Bypass again from Finder, Spotlight or Launchpad: Settings opens on Status, which says the icon is not visible, with a button that opens the Menu Bar settings. With the Settings window already open, opening the app again only brings it to the front.
Undo: Delete removes a domain, a custom service with all its domains, a rule or a route on the first click, and leaves a line in the list such as "Removed news.ycombinator.com." with an Undo button. Turn All On and Turn All Off leave one too ("Turned off 4 services."). Undo, or Edit > Undo (⌘Z), puts the entry back where it was, with its switch as it was, and its addresses are routed again. Undoing Turn All On or Turn All Off switches back only the entries it switched. While routes are still being applied, Undo is greyed out like the switches, and ⌘Z waits up to 10 seconds; if they are still running then, the change stays on the line to undo later. The line covers the last change only: the next delete or Turn All On/Off replaces it, and switching page or mode, or closing Settings, drops it. Each of these also cancels a ⌘Z still waiting for routes, which then changes nothing.
Rules (Custom mode): the ordered rule list, first match wins. Each row shows what it matches (a globe for a domain or a *.wildcard, a grid for a service, a network glyph for an IP or a range), then its route chip and its switch. The chip opens the routes to pick from and New Route…. Edit and delete appear when the pointer is on the row, and are in its right-click menu. A rule on a proxy or Tailscale-peer route says on its second line that only apps set to use that route go this way, or that the rule does nothing while the route is off. A process rule (an app) is served by per-app routing when that is on, Custom mode is in use and the rule's route is Direct, and its second line then counts the connections that went around the VPN; otherwise it says why it does nothing now, and a rule for a VPN or network security app says per-app routing turns it down. To add one, pick App in the rule editor's Match control, then type the app's bundle ID or executable name, or click Choose… for the same chooser the Apps page uses. The editor refuses what the Apps page refuses: a path, a wildcard, an .app folder, VPN Bypass itself and a VPN or network security app. Drag a row to move it. The last row, Everything else, picks the route for traffic no rule matches.
Routes (Custom mode): Direct and the detected VPN under Always there, then Your routes, the proxy, Tailscale-peer and pinned VPN routes you add with +. Each proxy or Tailscale-peer route shows on one line the local address apps point at and where it goes, then its type and its switch. With the pointer on it: Copy Proxy URL, edit, and ⋯ with Copy Shell Exports, Duplicate and Delete. A pinned VPN route has no local address: its line shows only the tunnel it uses, and the pointer brings edit and ⋯ with Duplicate and Delete. After a copy, the line under the list says what was copied. After Copy Proxy URL it also says how a browser signs in: the user is vpnb, and the password is the part between vpnb: and @ in the URL.
Status: whether the app is working right now, on one page. A line at the top gives the verdict ("Working", "Not working", "No effect" under a VPN kill switch, "No VPN connected") and the same sentence as the dropdown, for example "4 services and 2 domains skip the VPN. 62 addresses routed 23 s ago, none failed." With the helper not running the verdict is "Not working" even with no VPN connected, since connecting would route nothing: the sentence says the helper is not running, and the line under it says what no VPN means ("Nothing is routed until a VPN connects.", or how many addresses stay routed). Under it:
- Helper: the privileged helper's state and version, with an Install, Update or Retry button when it is not ready. A helper that is not ready is the first section on the page; a ready one comes after "Where does this site go?". This is the page the dropdown's Fix… button opens.
- Problems, after a partly failed apply, and the last route check, as described above.
- Where does this site go?: type a name, a link or an address and press Return or Check. One answer comes back, the same one
vpnb whygives (see below): which entry decides its way and which way the path check saw it leave, with ▲ when that is the wrong way, nothing answered, or the check is broken. When no list has the site, Add puts it in the current mode's list (Add to Bypass, Add to VPN Only, or Send Direct, a rule to Direct in Custom mode), and the site is checked again. - Connection: the VPN and its interface, the normal connection (Wi-Fi network and gateway), and which interface carries the default route.
- Addresses: what the last apply routed ("62 addresses, 23 s ago, none failed"), what they come from ("4 services, 2 domains"), and the last Verify Routes ("10 of 62 checked, all reachable, 4 min ago"), with a Verify button. While a check runs, whether it started from this button, from the dropdown or after an apply, the row reads "Checking now…" with a spinner beside a greyed-out Verify.
- DNS: the resolver used outside the VPN, when DNS was last refreshed and when it is next due, with Refresh Now.
- Tunnels: every tunnel that is up, each with one sentence ("The app acts on this one. It carries the default route.", "Never touched." for Tailscale), the Act on menu that pins one tunnel, and Addresses owned, how many kernel entries carry the app's tag. In VPN Only the catch-alls are counted apart ("2, plus 4 catch-alls"), so the first number matches Routed while the kernel holds what the app installed; in Bypass and Custom it is one number. The tunnels are read when the page opens, when the VPN changes, and on Refresh.
- Recent warnings: the three newest warnings and errors. Show in Log opens Logs with Warnings selected.
Lookups: the names this Mac looks up, most frequent first, for when you do not know what to add. It is off until you click Start Watching; Stop Watching, in the page header, turns it off again. Then the helper runs tcpdump to read the DNS questions the Mac sends on every interface, the VPN included. It never reads the answers, questions other devices send to this Mac, or any other traffic, and it never puts an interface in promiscuous mode. A name counts once per 3 seconds, so the A, AAAA and HTTPS questions a browser sends for one visit are one lookup. The header's search (⌘F) filters the list and Clear starts the count again. Each row is the name, then its count at the right end, in a column as wide as the biggest count. A row the mode does not route yet is one line with a globe. Point at the row and its add button appears, saying what it does in the current mode in its tooltip and spoken name: Add to Bypass, Add to VPN Only, or Send Direct (a rule to Direct in Custom mode). The row's right-click menu holds the same actions. When a service that is off lists the exact name, built-in or custom, the button reads Turn on and the service's name (a power glyph), and turns that service on, unless a custom service holds a built-in one off by its name; then the line under the search says why and nothing changes.
The ⋯ beside the button (More ways to add) opens the add panel, anchored to the row. What to add: the exact name, chosen by default, or a wildcard over it at any level, so api.us5.datadoghq.com offers *.us5.datadoghq.com and *.datadoghq.com. The widest is the site's own domain: never *.com, and three labels under a country suffix such as co.uk or com.au (*.bbc.co.uk, never *.co.uk). A wildcard covers every name under it, routed by the helper as each one is looked up, so the page does not have to keep watching. How that works, and its limits: research/wildcards-and-network-extension.md. Where: in Bypass mode, the Bypass list, New Service…, which makes a custom service with the choice as its first domain, or any service, built-in or custom, with a search field. Services that are off are marked off, and the ones that already hold a name under the same site domain come first. A name added to a catalogue service that is off waits there until you add the service from Browse catalogue. Eight services show at once; a longer list scrolls inside its box. In VPN Only mode the panel offers the VPN Only list only, since services route only in Bypass mode. In Custom mode it adds a rule to Direct: a domain rule for the exact name, a suffix rule for a wildcard. Add saves the choice (Return), Cancel or Escape closes the panel.
A name added to a built-in service is kept apart from the service's shipped domains, so it survives restarts, app updates, and switching the service off and back on from the catalogue. The Services page lists it on the service's second line as Added. Point at the row (or use its right-click menu or VoiceOver actions) to remove it: Remove and the name, or ⋯ with one Remove per name when there are several; the shipped domains cannot be removed.
A name the mode already routes has a check glyph and says so on its second line: Bypassed, with the service's name when a service has it (Bypassed · Meetings), Via VPN, or the route its rule sends it to. A wildcard counts: with *.datadoghq.com on the Bypass list, every name under it reads Bypassed. Point at the row and a button appears that takes the name back out, through the same path as the Domains, Services or Rules page, so its routes go too:
| Where the name is listed | The button | What it does |
|---|---|---|
| The name itself on the Bypass or VPN Only list | Remove | Takes the entry off the list |
| A wildcard on the list that covers it | Remove *.example.com |
Takes the wildcard off; names under it stop unless another entry lists them |
| The name in a custom service, or added to a built-in one | Remove from Service | Takes only that domain out of the service |
| A wildcard in such a service | Remove *.example.com from Service |
Takes the wildcard out of the service |
| A domain a built-in service ships with | Turn off Service | Turns the service off, which stops all of its names |
| A Custom mode rule to Direct | Remove, or Remove *.example.com for a suffix rule |
Deletes the rule in force, as the Rules page does |
The name's own entry comes off before a wildcard over it, and the list before a service. When another entry still lists the name after a remove, the line under the search says so, and pointing at the row again offers to remove that one. A Custom mode rule that sends the name to the VPN or a proxy has no button; change it on the Rules page. A name whose entry is switched off reads Off, with a pause glyph, and has no button; switch it on or remove it on the Domains page. The buttons wait while routes are being applied. The list lives in memory only and is cleared when you stop watching or quit; a name you only see here is never written to the log or to disk. A name you Add is saved and logged like any name you type in by hand. Whether the page is watching is saved, so the capture resumes when the app restarts. If the app stops asking for a minute, the helper stops tcpdump by itself.
Lookups a browser sends over encrypted DNS (Secure DNS, DNS over HTTPS) go out as HTTPS and never show here. To see them, turn Secure DNS off in the browser's settings while you look. Plain DNS sent over TCP does not show either, because the capture reads UDP port 53 only; macOS uses TCP for a lookup only when a UDP answer comes back too large to fit.


Learn a site: when a site half works after you add it, the usual cause is a name it needs that no list has: its CDN, its sign-in or its API. Learn a Site…, at the top of the Lookups page, finds them. Click it, then reload the page that does not work. For 60 seconds the page keeps every name first looked up in that window, with a countdown and a Stop button. It reads the same helper capture as the count, and works whether or not the page is watching: when it is not, the capture runs for the 60 seconds only and stops after. Names the Mac asked for just before the click go to the count, not to the window.
The names come back grouped by the site's own domain, one row each: the domain, its names on the second line, and how many. A site with three names or more offers its wildcard (*.example.com) as a checkbox, which adds the wildcard instead of the names. The site's own domain follows the add panel's rule, so a name under a country suffix or a hosting domain groups under the customer's own name (bbc.co.uk, d1.cloudfront.net), never *.co.uk. A row whose names the mode already routes has a check. One button under the list adds everything left, in the mode's own way (Add to Bypass, Add to VPN Only, or Send Direct), one entry after the other so each gets its routes, and the line under the search says how many went in. Done forgets the names.
Like the count, the names live in memory only, and are never written to the log or to disk until you add them. The same limits apply: a lookup sent over encrypted DNS never shows, and a name the browser or macOS still holds from an earlier visit is not asked again, so a reload may not show it; quit and reopen the browser to make it ask again.


General: settings only, in seven groups. Startup holds Open at login and the language. Routing holds Apply when a VPN connects, Pin listed names in /etc/hosts, Look up addresses again (every 15 minutes to every 6 hours, or Never), Check the path after applying (the path check described in How it works, run on up to 10 routed addresses after each apply) and Block listed sites when the VPN drops. Per-app routing holds its switch (off by default), its state, what it takes and what it leaves to the routes, the two approvals macOS asks for, and while it is on how many connections went around the VPN; Remove Extension appears under it while the switch is off and the extension may still be on the Mac. What it does and how turning it off removes it: How it works. Network profiles is described below. DNS servers shows the detected server and the extra servers asked with it; each one is an address, a https:// DoH link or a tls:// DoT address, and Add Server adds a line. Notifications has the master switch, a checkbox per kind (VPN connects, VPN drops, Addresses change, Something fails), greyed while the switch is off, and Play a sound. Configuration has Export… and Import…. Under the groups, Advanced holds the global SOCKS5 proxy; it opens by itself when the proxy is on. The proxy is the Proxy route on the Routes page: its address, login and switch follow what you set here, and turning it on gives it that route if it has none. In Custom mode it is hidden, and one sentence points to the Routes page, where a proxy is a route.
Network profiles: a profile keeps a mode and its lists (the Bypass domains, which services are on, the VPN Only list, and Custom mode's rules) for the networks you pick. Save as Profile for This Network… saves what is in use now; nothing routes differently, but from then on changes made on that network stay in the profile. When the Mac joins one of a profile's networks, the profile is put in use and its lists are applied the way a mode switch applies them: at once with the VPN up, through the usual post-connect wait when the VPN has just connected, and not while paused in the same mode (Resume applies them); a switch to another mode ends the pause, as choosing another mode by hand does. On any network no profile claims, Other networks is in use, which holds the settings you had before the first profile. Use on This Network moves this network to another profile. A network is told apart by its router: the router's address, its hardware (MAC) address from the ARP table, and whether the Mac reaches it over Wi-Fi or Ethernet. That needs no Location permission and works on Ethernet. Two networks can share a router address, and right after a move the ARP table can still hold the previous router; when the network changes but the router reads as before, the app reads it again as soon as that ARP entry refreshes (it checks every 5 seconds for up to 5 minutes), so the right profile is in use before the apply that follows a reconnect. The same router over Wi-Fi and over Ethernet counts as two networks, so add both to a profile if you use both. Services are kept by their id only, so a profile never copies the catalogue, and renaming a service does not change which profiles turn it on. Deleting a profile asks first. Export keeps the profiles but not their networks; after an import, use Use on This Network to bind them again.
Block listed sites when the VPN drops, under Routing, is off by default and acts in VPN Only mode. Without it, a VPN drop takes the routes into the VPN away and the listed sites load over your normal connection. With it on, the helper puts a block (a reject route) on each listed address the app resolved, so a connection to it fails at once, and the dropdown says "VPN down: listed addresses blocked for N site(s)" with Open them directly, which takes the blocks away until the next drop. Disabling or removing an entry takes its blocks away too. When the VPN returns, the apply that puts the routes back replaces the blocks; while that apply waits for the tunnel to settle the line reads "Waiting for VPN routes". Leaving VPN Only, turning the setting off, removing all routes and quitting take the blocks away, and a block left by a crash goes at the next start. It blocks the IPv4 addresses the app resolved and the IPv4 ranges on the list, nothing else: an IPv6 address or a lookup that skips the system resolver (browser DoH) still reaches a listed site, and a launch with the VPN already down blocks nothing, since there was no drop.
Logs: the last 200 log entries, newest first. The segmented control above the list shows All, Warnings (warnings and errors) or Errors, and the header's search (⌘F) keeps the entries whose text contains what you type, ignoring case and accents, with the match marked. Beside the control, a line says how many entries match, for example "3 of 200 entries". Copy, at the end of that line, copies only the entries shown. Clear removes every entry, including the ones the filter hides. A line written while the app served a request on the control socket, from vpnb or an MCP server, ends in "via the command line", and so do the lines of the work that request started. The dropdown's "Last change" line opens the page with a "From the command line" token that shows only those lines; click the token to show every line again.
About: the version, the licence and the author, then Website, GitHub and Report a problem…, and one Support the project row whose menu lists GitHub Sponsors, Buy Me a Coffee, Patreon and Thanks.dev. Report a problem… copies a diagnostics bundle (the app, helper and macOS versions, the VPN type, the mode, counts, the settings and the last 10 warnings and errors) and opens a new bug report with the version and, when it fits in the link, the bundle filled in. The bundle has no names: every domain, address, service, rule, route, URL, e-mail and user folder is replaced before it is copied.
Command-line control (vpnb)¶
A bundled vpnb CLI drives the same routing the GUI does, over a user-only UNIX socket, for scripting or a headless Mac. It needs no extra privilege (the app already holds it).
vpnb ships inside the app bundle (VPN Bypass.app/Contents/MacOS/vpnb). Installing via the Homebrew tap (brew tap geiserx/vpn-bypass && brew install --cask vpn-bypass) symlinks it onto your PATH. With a manual DMG install, call it by its full path ("/Applications/VPN Bypass.app/Contents/MacOS/vpnb") or symlink it onto your PATH yourself.
vpnb status # current mode, routes, schema/version
vpnb mode mode=custom # switch modes: bypass | vpnOnly | custom
vpnb route.add name=work type=socks5 host=127.0.0.1 port=1080
vpnb route.add name=Block type=block # a blackhole: names sent here get no answer
vpnb rule.add match=suffix pattern=example.com routeId=<uuid>
vpnb rule.add match=geoip pattern=ir routeId=<uuid> # a country's IPv4 ranges (downloads the list)
vpnb rule.add match=geosite pattern=category-games routeId=<uuid> # a domain list, as wildcards and names
vpnb route.list ; vpnb rule.list
Secrets are never passed on the command line (argv is world-visible via ps). Pass the bare token pass:- and pipe the password on stdin:
Per-app routing (off by default, see How it works) has its own verbs: vpnb engine.status (the switch, the state and its reason, the policy the extension confirmed, and per rule the connections that went around the VPN), vpnb engine.on (files the activation request; macOS then asks for the two approvals), vpnb engine.off (turns it off and, if it was on, removes the extension, which asks for the administrator password; with the switch already off it changes nothing) and vpnb engine.remove (removes the extension and its configuration, also when the switch is already off). engine.off and engine.remove return as soon as the removal is requested, before macOS has finished it, so a script checks engine.status: its removal field says removing while the request waits (for the password, for example), removed once it is done, needsRestart when macOS finishes it at the next restart, and failed.
Set VPNB_SOCKET to override the socket path (default: ~/Library/Application Support/VPNBypass/control.sock).
Domains, services and logs (4.9.0 and later)¶
From VPN Bypass 4.9.0, vpnb also reaches the Bypass and VPN Only modes: the two domain lists, the services, the routes the app has installed, the refresh buttons and the log.
vpnb domain.list
vpnb domain.add domain=example.com
vpnb domain.add domain=10.0.0.0/8 list=vpnOnly
vpnb domain.disable domain=example.com
vpnb domain.enable domain=example.com
vpnb domain.rm domain=example.com
vpnb service.list
vpnb service.list id=netflix
vpnb service.enable id=netflix
vpnb routes.active
vpnb routes.clear
vpnb refresh
vpnb dns.refresh
vpnb logs limit=20 level=error
domain.listshows both lists, the Bypass list first;list=bypassorlist=vpnOnlyshows one. The VPN Only list also takes a CIDR.domain.addadds to the Bypass list unless you passlist=vpnOnly. It cleans and checks the value the way the Domains tab does. The Bypass list refuses an IP range such as10.0.0.0/24and takes a pasted link as its host name, and the VPN Only list refuses a malformed CIDR and a/0or/1. Adding a domain that is already on the list, or one that a service has as its name, returnsalready_exists.domain.rm,domain.enableanddomain.disabletakedomain=orid=<uuid>, and look in both lists unless you passlist=. They readdomain=by the same rule asdomain.add, so a value that added an entry also finds it: on the Bypass listhttps://example.com/pageandexample.com/pagefindexample.com, and withlist=vpnOnlya value with a/must be a CIDR such as10.0.0.0/8. Withoutlist=, a link is looked up on both lists by its host. A malformed range such as10.0.0.0/33returnsinvalid_args. When the same domain is on both lists, passlist=bypassorlist=vpnOnly.service.listlists every catalogue service with its switch, plus your custom services.service.list id=netflixshows one service with its domains and IP ranges.service.enableon a catalogue service adds it to the Services page;service.disableturns a service off and sends a catalogue service back to the catalogue.service.enablereturnsalready_existsfor a built-in service that one of your custom services has the name of; rename the custom service first.- Enabling something that is already on, or disabling something already off, succeeds and changes nothing.
- A domain or service change is saved before
vpnbreturns. The routes for that entry are added or removed a moment later, and only while a VPN is connected and the app is in the mode that uses that list: Bypass mode for the Bypass list and the services, VPN Only mode for the VPN Only list. Runvpnb routes.activeorvpnb logsto see them. routes.activelists the routes the app has installed;source=<domain or service name>keeps one source.routes.clearis Remove All Routes… in the dropdown's "…" menu, without the question, and the routes it removes come back at the next refresh, VPN reconnect or DNS refresh.refreshis the Refresh Routes button anddns.refreshis Settings > Status > Refresh Now. Both start the work and return at once.refreshfails withhelper_not_readywhen the privileged helper is not ready.vpnb statusprints the running app's version asapp: <version>(theappVersionfield on the socket).logsprints the newest entries first. It takeslimitfrom 1 to 200 (default 50) andlevelasinfo,success,warningorerror.- An app older than 4.9.0 answers these commands with
unknown_command.
JSON output¶
Add --json anywhere on the line and vpnb prints the app's reply as one line of JSON instead of text, for every command. A script can then read it with jq rather than parse the text, which may change between versions.
{"ok":true,"result":{"defaultRouteId":"6F1C2E4A-8B3D-4F5E-9A7C-1D2E3F4A5B6C","mode":"bypass","routes":[{"egress":"vpnDefault","enabled":true,"hasPassword":false,"hasProxyUser":false,"id":"6F1C2E4A-8B3D-4F5E-9A7C-1D2E3F4A5B6C","name":"Corporate VPN"},{"egress":"direct","enabled":true,"hasPassword":false,"hasProxyUser":false,"id":"0A9B8C7D-6E5F-4A3B-8C2D-1E0F9A8B7C6D","name":"Direct"}],"runtime":{"appVersion":"5.2.0","enforcedRouteCount":3,"enforcing":true,"helperReady":true,"helperState":"Helper Installed","vpnConnected":true,"vpnInterface":"utun4","vpnType":"WireGuard"},"schemaVersion":1,"supportedVersion":1},"v":1}
{"ok":true,"result":{"activeRoutes":[{"destination":"93.184.216.34","gateway":"192.168.1.1","source":"example.com"},{"destination":"203.0.113.0/24","gateway":"192.168.1.1","source":"Example Service"}]},"v":1}
- Keys are sorted, and a field that does not apply is left out rather than set to
null.statuslists underroutesthe route table that Custom mode's rules point at; normally it holds at least the VPN and Direct routes, which the app adds when the list is empty, butroute.rmcan remove either, so a script should not assume them.defaultRouteIdnames the route unmatched traffic takes.runtime.helperStateis display text in the app's language; testhelperReadyandenforcinginstead. Every reply hasvandok, thenresulton success orerror(codeandmessage) on failure. - Exit codes stay the same: 0 ok, 1 the app answered with an error, 2 the app could not be reached. On exit 2 the message still goes to stderr, and stdout carries an error object too, with the code
app_unreachable,no_responseorno_stdin, so a script always gets one JSON object to read. - No password or proxy user name is ever in the reply. A route says
hasPasswordandhasProxyUserinstead. - In
routes.active,sourceis the list entry, service or rule the route was installed for, not an application: see Which app uses a route. Routing priority explains how these routes win over the VPN's and how to spot them innetstat -rn. helpand a barevpnbstill print the help text.
Where does this site go? (vpnb why)¶
vpnb why <host> takes a name, a link or an address and says which entry decides its way, then path-checks it. It works in every mode and changes nothing.
The host is resolved as the macOS resolver answers it (what a browser connects to, hosts file and wildcards included) and as the app resolves its list. While routing is paused the answer says so ("Routing is paused until 14:32, so example.org follows the VPN until then.") and the check expects the VPN when one is connected, since the app's routes are out until the pause ends; with no VPN it says only how long the pause lasts. A route the pause could not remove still decides the answer. Otherwise, in order: an installed route for one of its addresses, named by its source; a listed wildcard that covers it; in Custom mode the rules, first match by order, name and address rules alike, then the default route; a list entry with no route yet; nothing. Up to 4 addresses are checked as in Path check, with the same control. The text reply is one or two sentences, a line per address and one for the control, then the facts:
example.org is not on your list, so it follows the VPN. The check saw it leave through utun4, and it answered on port 443.
203.0.113.7 via utun4 from 10.8.0.2 443: connected in 24 ms ok
control 192.0.2.1 via utun4 from 10.8.0.2
match: none expected: tunnel:utun4 verdict: ok
With --json, result.why holds match (route, wildcard, rule, defaultRoute, listed, none, unresolved, paused), entry, expected (physical or tunnel:<interface>, absent for a proxy or exit node, which the routing table does not decide, and for a name the app does not route by design), checks (interface, sourceAddress, answer, latencyMs, and verdict, left out when the control is broken unless notRouted is set), control (the same fields without verdict, absent when no control ran), splitTunnel (true when the control left around a VPN that carries only some networks, absent otherwise; then an address no route covers is expected to leave through the physical interface, and the text facts end with vpn: split tunnel), verdict (ok, noAnswer, wrongWay, unknown, checkBroken, notChecked, noVPN, unresolved), the summary sentence in the app's language, canAdd when nothing lists it, notRouted when a wildcard covers the name but learns no route for it (ownResolver: another resolver serves its domain, named in resolverDomain, as Tailscale's MagicDNS serves example-tailnet.ts.net; addressNotRoutable: every address is one a wildcard never learns, such as 100.64.x.y; the name is then right whichever way it leaves, and the text facts end with not routed: …), paused ("until 2026-10-31T14:32:00Z", "until the VPN reconnects", "until resumed") while routing is paused, and in Custom mode inactiveAppRules, the patterns of the enabled process rules that per-app routing does not serve now (the summary ends with a sentence naming them, and the text facts with inactive app rules: …).
The MCP server uses the same socket, so an AI agent can do all of this too.
Pause and resume (vpnb pause)¶
vpnb pause 15m # or 1h, any length up to 24h, or reconnect
vpnb pause # until vpnb resume
vpnb resume
vpnb pause does what the dropdown's Pause does and is refused the same way, with code pause_refused and the reason (in VPN Only, say), or nothing_to_pause when no VPN is connected and no route is in. While paused, refresh and dns.refresh answer with code paused, and vpnb status adds paused: until 2026-10-31T14:32:00Z (or until the VPN reconnects, until the helper is ready, until resumed), runtime.paused with --json.
Shortcuts actions¶
The Shortcuts app lists six VPN Bypass actions:
| Action | Does what vpnb does with |
|---|---|
| Set Routing Mode | vpnb mode mode=<bypass\|vpnOnly\|custom> |
| Add Domain | vpnb domain.add domain=<name>, with list=vpnOnly for the VPN Only list |
| Turn Service On or Off | vpnb service.enable id=<id> or service.disable, picking the service by name |
| Get Status | vpnb status: returns a line such as "Bypass mode. Routed addresses: 62" |
| Pause Routing | vpnb pause, with the dropdown's four lengths |
| Resume Routing | vpnb resume |
Each action runs in the app, through the same code as vpnb, so it gets the same checks and the same errors: a refused add stops the shortcut with the reason vpnb prints. A change shows in the dropdown footer as "Last change: … via Shortcuts", and its log lines carry "via Shortcuts"; a click on the footer line opens Logs showing only those lines.
Shortcuts' own automations (a Focus turning on, a time of day, joining a Wi-Fi network) can run these actions; which of those triggers a Mac runs depends on the macOS version.
